Brief
Manufacture of Aluminium & Zinc Pressure Die Cast components used in varied applications such as Automobiles, Electrical & Electronic Appliances etc., and Die Cast Rotors.
The machines are of German make with capacity 120t to 400t, and of type Horizontal Cold Chamber. There is a twin circuit multiplier injection system with separate accumulators for injection & intensification purposes, that can be varied independently to get dense pressure tight castings. Servo motor machines are available to perform post die casting operations like Drilling, Tapping, Screw fitting etc.
The unit is exporting components to USA from the last 8 years.
Quality Standards
Compliance as per ISO 9001:2008. The Die Cast Tools are made from high Quality HDS material by a reputed die and insert manufacturer. A Separate Quality Team is in place to inspect at various stages using Random, Patrol and Final Inspection methods.
Specifications
- Electrical Rotor Die Casting- minimum unbalance of 5 to 10gms.
- The resulting components are highly dense owing to Twin Circuit Injection System.
DIE CASTING SHOP VIEW

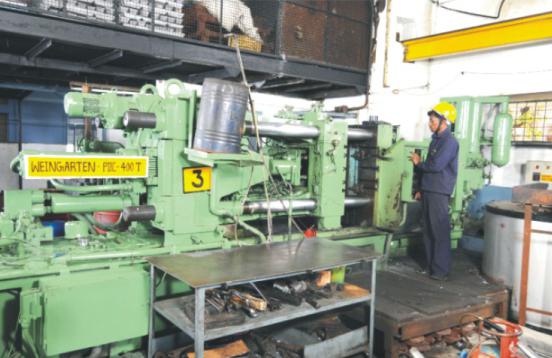

400t DIE CASTING MACHINE

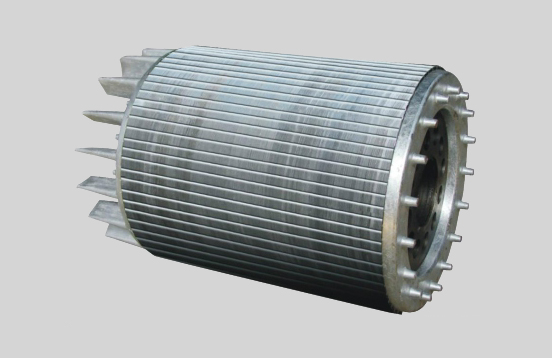

DIE CAST ROTOR

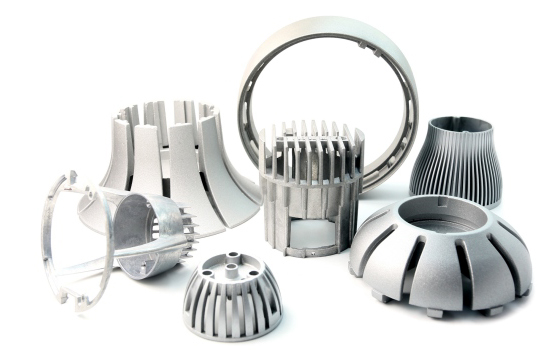

DIE CAST COMPONENTS
